Technical Data

Capstan Class B Sensus RM Type Water Meters (ISO - 4064) - EEC Marked

Capstan Sensus Woltman meters: (50mm-600mm) Removable Mechanicsm, class 'B' - EEC Marked

Application

• Measurment of high, relatively constant flow rates of water upto 45'C.
• Capstan Sensus HOT water meter suitable upto130'C.
• Remote reading capability - Digital output with Electronic Counters.

Materials of construction

• Body - Cast Iron.
• Measuring Element - Plastic
• Rotor - Plastic
• Brass and stainless steel are also used.

Application

• Meters have EEC marking.
• Hermetically sealed register (IP 68)
• High over load capacity .
• Symmetrical calibration adjustment ( DN 300 )
• Rotor Hydrodynamically balanced ( DN 300 )
• Removable measuring element .
• Powder coating offers maximum corrosion resistance .
• Register can be rotated through 360’
• Not affected by external Magnetic fields.
• ¼” connection port for pressure sensor .
• Upto 3 pulsers( 1 X OD , 2 X RD ) may be fitted without breaking the approval seal.
• Data Logger compatible meter can also be supplied.

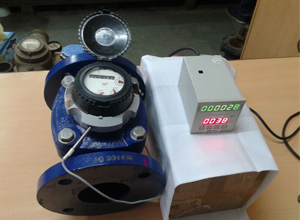

Capstan Sensus waters with Pulse Transmission Flow Rate Indicator-Cum-Totalizer & Remote Display Unit.
