OIL FLOW METERS
Federal OIL Flow Meter
Federal Oil Flow Meters, which is used for measuring the flow of viscous fluids. These meters are used to control the usage of oil in boilers, furnace, diesel generating set and shipping company. The offered oil meters are accurate, reliable and measure the movement of oil by counting the number of passed isolated volumes.
FM-01
Product-FEDREL MECHANICAL OIL METER
GOOD OVAL GEAR PRINCIPLE.
Flow Range -20-120 LPM
Accuracy Range - ±2%
Maximum Pressure - 50 PSIG End Details - Screwed Female Ends to BS: 21 BSP
Applications - Diesel, Kerosene, Methanol, Ethanol, Similar Solvents
Easy Installations, High Efficiency and Easy Operations.
FM-04

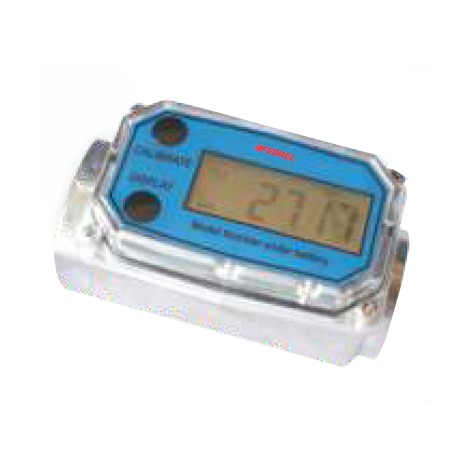

Product-FEDREL TURBINE TYPE DIGITAL OIL FLOW METER
Display - Digital LCD
Flow Range - 10-120 LPM
Body Material - Aluminum Temp Range -10°C to 50°C
Maximum Pressure - 20 Bar End Details - Screwed Female Ends to BS: 21 BSP
Applications - Suitable for all Fuels, Aviation Fuel & Water High Efficiency and
Easy Operations,
Digital Display Long Battery Life.
FM-06
Product-FEDREL
OVAL GEAR OIL METER
Body Material - Cast Iron
Temp Range -10°C to 60°C
Pressure Rating - PN-16
End Details- Flanged Ends to ASME B16.5
(#150)/ BS EN: 1092 PN 16
Applications- Diesel, Petrol, Kerosene, Furnace Oil
Feature large flow range, High viscosity liquids with easy calibration.
FM-07

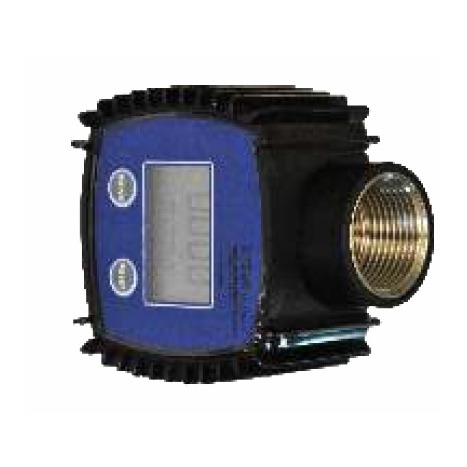

Product-FEDREL OIL FLOW METER
Display - Digital LCD
Flow Range - 10-100 LPM
Product Description - Oil Flow Meter with Plastic Body
Maximum Pressure - 20 Bar
End Details - Screwed Ended (BSP Threads)
Applications - Diesel, Kerosene, Gasoline.
